Multi-Boiler Pressure Profile System
Elenza Raphael V2
A three-step pressure profile, engineered in.
<p>Multi-boiler pressure profile system: a dedicated 500 ml coffee boiler for precise brew temperature, backed by a 2 L heat-exchanger boiler that preheats the water feeding it — reducing thermal shock and speeding recovery.</p><ul><li>3-step sequential pressure profile: P1 3–6 bar, P2 6–12 bar, P3 7–12 bar</li><li>High-performance rotary pump for controlled, consistent brew pressure</li><li>Separate coffee and HX boiler architecture for brew stability and strong steam performance</li><li>297 × 387 × 397 mm (W×D×H)</li></ul><p>Finish: Polished Stainless Steel with green manometers.</p>
Technical data
Specifications
| Boiler system | 500 ml Coffee Boiler + 2 L HX Boiler with preheated feed |
|---|---|
| Pump | High-performance Rotary Pump |
| Pressure profile | 3-step — P1 3–6 bar, P2 6–12 bar, P3 7–12 bar |
| Dimensions (W×D×H) | 297 × 387 × 397 mm |

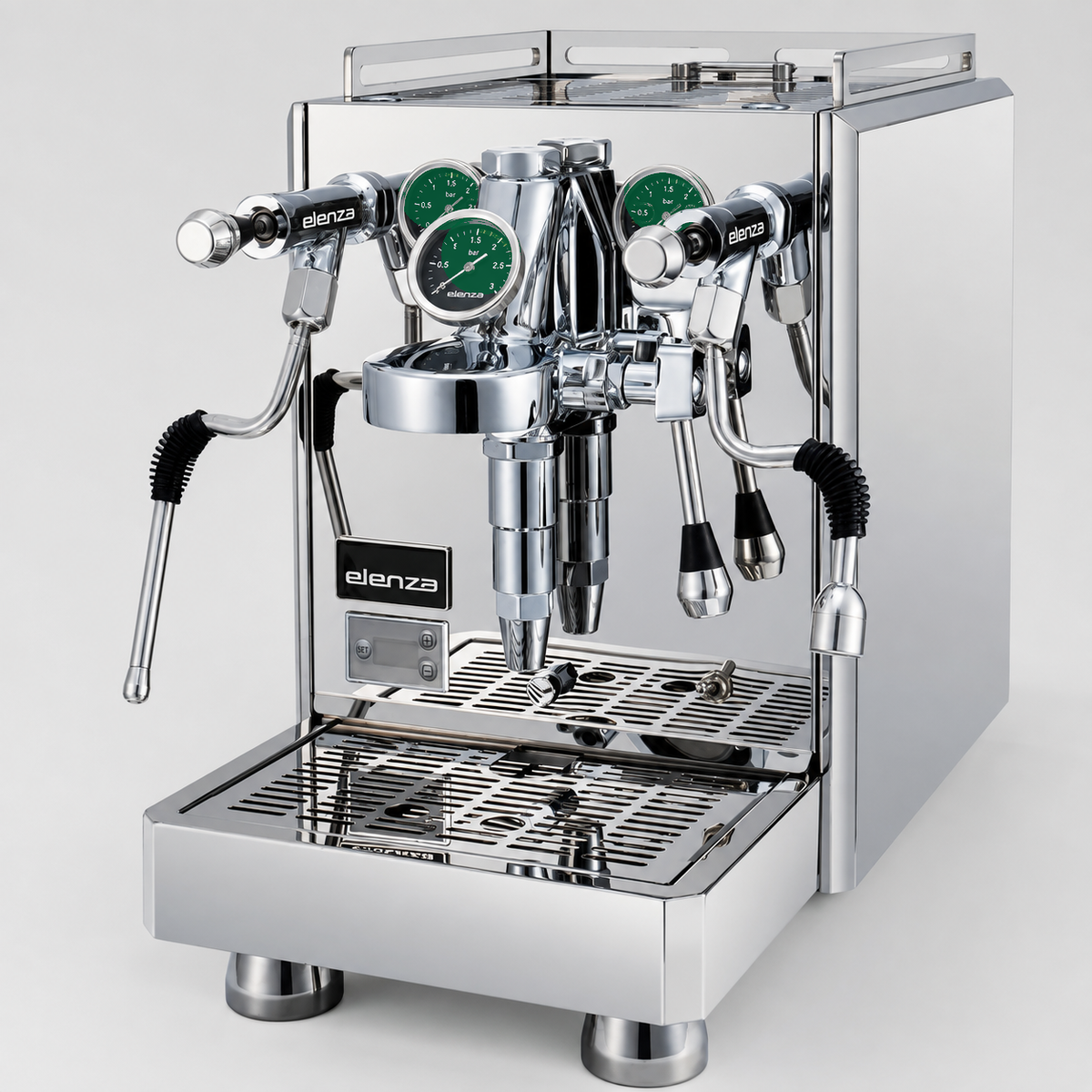

| Finish | Polished Stainless Steel with green manometers |
Accessories
In the box
- Press tamperWeighted, self-levelling
- Blind basketFor backflushing the group
- Group brushGets under the shower screen
- Bottomless portafilterWatch the extraction happen
- Twin spout attachmentTwo cups from one shot
- E&B Precision insertsE&B Precision shower screens and basket inserts
- * Fitted as standard on the Raphael V2, and stocked as spare parts.
Ready when you are
See it next to your setup.
Every finish, every model — talk to a dealer near you before you decide.
